ALUMIL SLIDING WINDOWS AND DOORS SYSTEMS
ALUMIL Sliding Systems have a minimalist design and ensure maximum light penetration. Its unique design is aligned with the latest architectural trends.
ALUMIL SUPREME S650 e-MOTION is the automated version of the SUPREME S650 PHOS series. The elegant design and the electrical automation offering maximum ease of use, make it the perfect solution for projects that require impressive wide spans with the uninterrupted view, as well as perfect comfort.
Benefits
High energy efficiency
High level of security
Easy to use and high functionality, thanks to the automated system
Enhanced natural light due to the minimalist design and ample glazing
Safe use due to system sensors and safe operation in the event of power failure
High sound attenuation
Ideal for large openings
Technical data
UW - 1,1 W/m²K
Sash depth – 67,4 mm
Burglar resistance RC2
Uf de la 3,8 W/m²K
Air permeability – 3
Wind load resistance – C3
Polyamides, PVC
Triple glazing
Typologies available
ALUMIL SMARTIA M23300 is an insulated lifting sliding system for elegant windows and doors, combining the advantages of aluminum with the warmth of natural wood.
Benefits
High level of safety
Energetic efficiency
High sound attenuation
Excellent aesthetics, warm, woody interior
r Easy access and high functionality
Weather resistance
Technical data
Sash depth – 73,5 mm
Lift & slide mechanism
Sash weight - up to 300 Kg
Continuous perimetrical tri fin in two levels brush and EPDM gasket
Maximum glazing thickness - 22 up to 28 mm
Polyamides 14,8 mm & 24 mm, PE insulation Foam, PVC parts, Double glazing

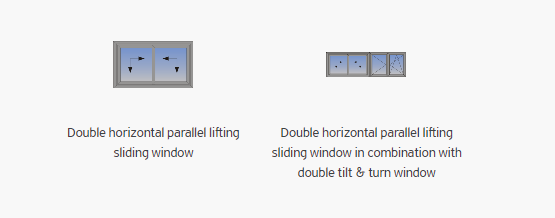

Typologies available
ALUMIL SMARTIA M12000 is ALUMIL’s new ingenious sliding system which gives you the option for sliding or lift & slide frames. Its unique design, with very elegant lines, is completely in line with the latest architectural trends. The system was specially designed for warmer climates and meets a wide range of needs, with additional options for large window spans.
Benefits
High level of safety
Weathering resistance
High sound attenuation
High degree of functionality and accessibility
Technical data
Sash depth – 45 mm
Lift & slide mechanism
Sash weight - up to 200 Kg
Continuous perimetrical tri fin in two levels brush and EPDM gasket
Maximum glazing thickness - up to 50 mm
Conceal low frame in marble
Typologies available
ALUMIL SMARTIA S440 is an innovative insulated sliding system which incorporates all the modern architectural trends and the requirements for high energy-efficiency. It is an ideal option for the very demanding European market.
Benefits
Very good quality-price ratio
Energetic efficiency
High sound attenuation
Facilitating natural light penetration due to its special design and ample windows
High level of safety
Weather resistance
Technical data
Sash depth – 44 mm
Uf from 1,5 to 5,0 W/m²K
Perimetrical locking mechanism
Sash weight - up to 180 Kg
Continuous perimetrical tri fin in two levels brush
Maximum glazing thickness - up to 32 mm
Polyamides 40 mm & 32 mm, PVC parts
Air permeability – class 3
Typologies available
