PVC WEISS PROFIL SYSTEMS
All Weiss Profil PVC systems are made with eco-friendly lead-free PVC stabilizers. The high thermal insulation saves electricity. By saving electricity, you lower the amount of harmful gases in the atmosphere considerably.

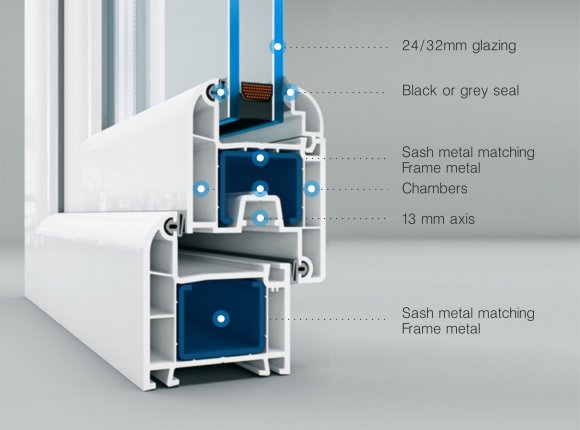

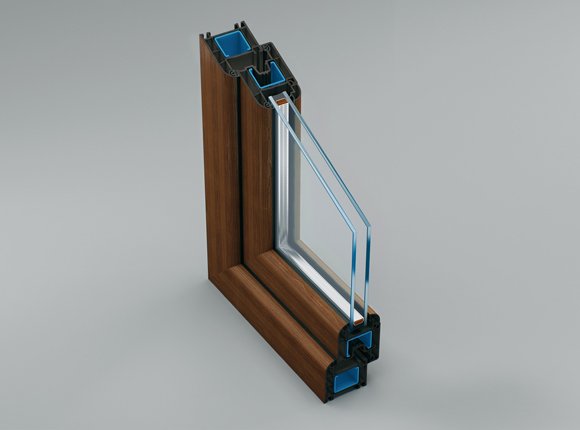

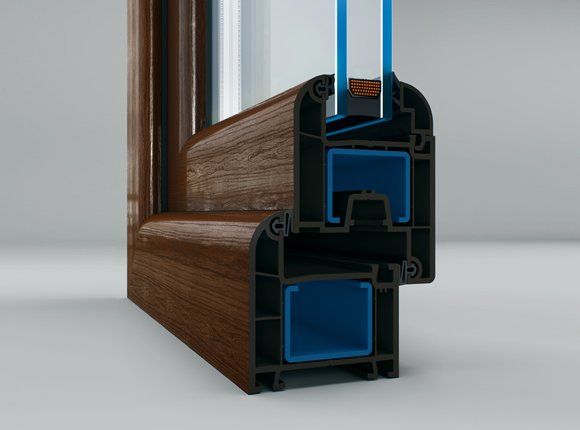

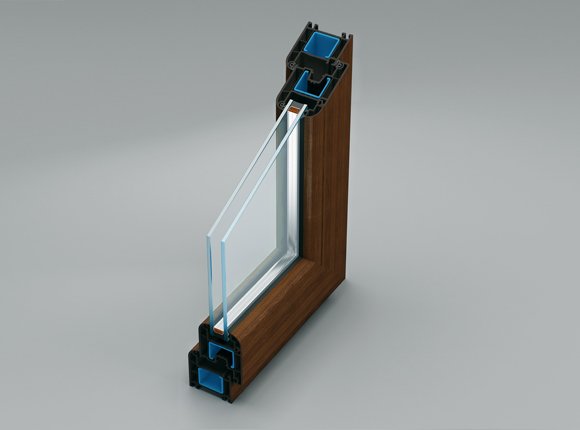

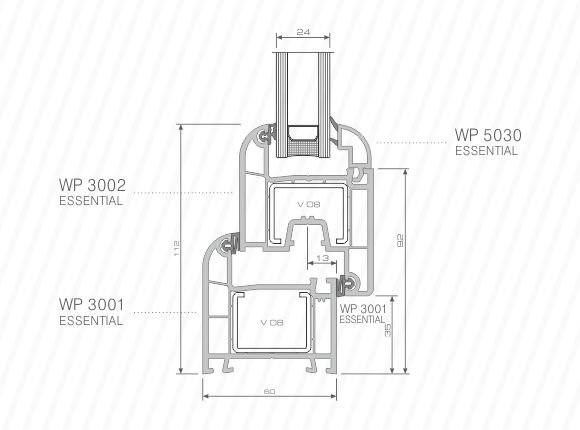

The WP3000 is a 3-chamber PVC system for doors and windows, which offers a variety of profiles that allow making of constructions with different types of opening and configuration:
Window opening inwards
Door opening inwards
Door opening outwards
Constructions of 90° and a random angle between them
One-sash and two-sash doors and windows combined with unopenable parts
◙ ◙ ◙
Benefits

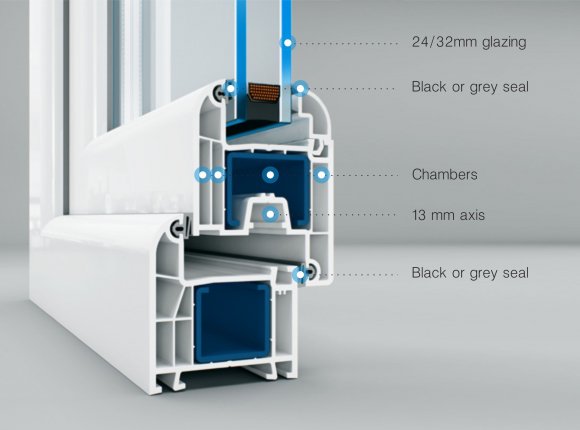

Possible application of glazing and glass panes with different thickness - 24 mm or 32 mm
Steel profile with width of 1.5 mm and 2.0 mm thick which provides improved window strength (depending on the size), similar to the frame profile and the sash window profile
TPV seal for PVC joinery, which facilitates assembling operations
Existence of a special canal of the sash profile for faster and easier assembly of fitting. System center - 13 mm
Technical data
Width of the frame profile- 60 mm
Width of the sash window profile- 60 mm
Thermal transmittance coefficient - 1.0 W / m2K
Sound insulation 39 dB
Air permeability Class 4
Water tightness Class A8
Resistance to wind load Class 5A/5B
*The provided values are results for a window with 32 mm glazing.

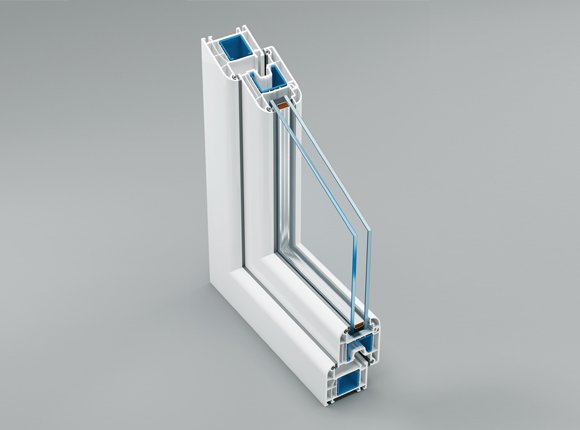

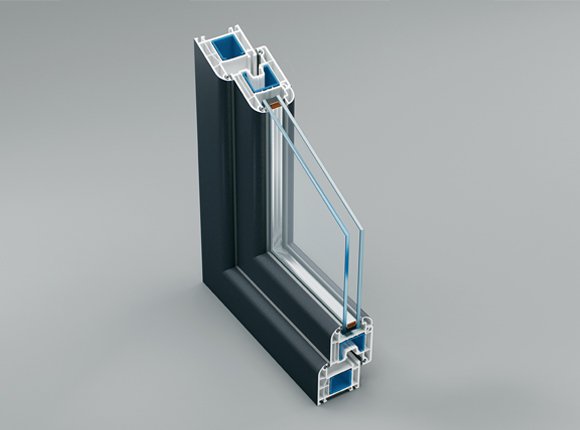

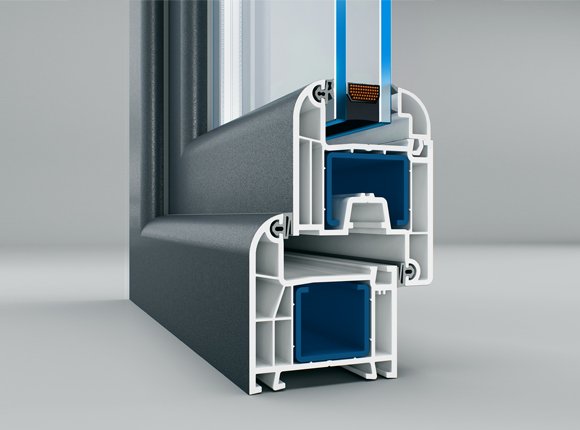

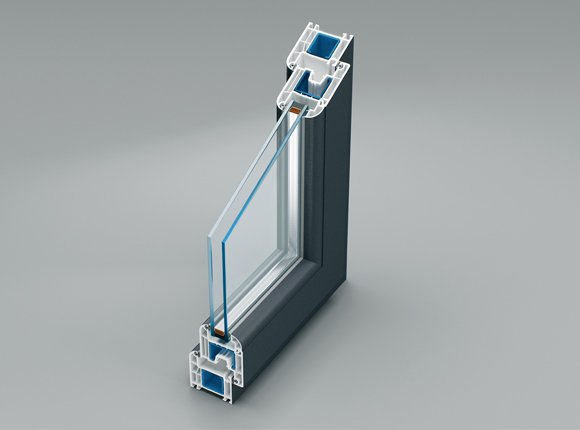

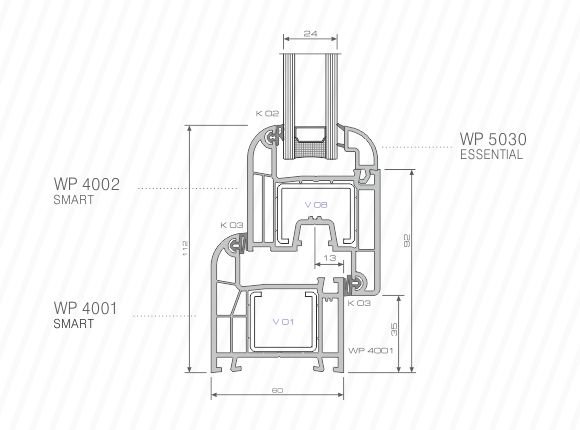

The WP4000 is a 4-chamber PVC system for doors and windows, which offers a variety of profiles that allow making of constructions with different types of opening and configuration:
Window opening inwards
Door opening inwards
Door opening outwards
Constructions of 90° and a random angle between them
One-sash and two-sash doors and windows combined with unopenable parts
◙ ◙ ◙
Benefits
Possible application of glazing and glass panes with different thickness - 24 mm or 32 mm
Steel profile with width of 1.5 mm and 2.0 mm thick which provides improved window strength (depending on the size), similar to the frame profile and the sash window profile
TPV seal for PVC joinery, which facilitates assembling operations
Existence of a special canal of the sash profile for faster and easier assembly of fitting. System center - 13 mm
Technical data
Width of the frame profile- 60 mm
Width of the sash window profile- 60 mm
Thermal transmittance coefficient - 1.0 W / m2K
Sound insulation - 40 dB
Air permeability Class 4
Water tightness Class A8
Resistance to wind load Class 5A/5B
*The provided values are results for a window with 32 mm glazing.

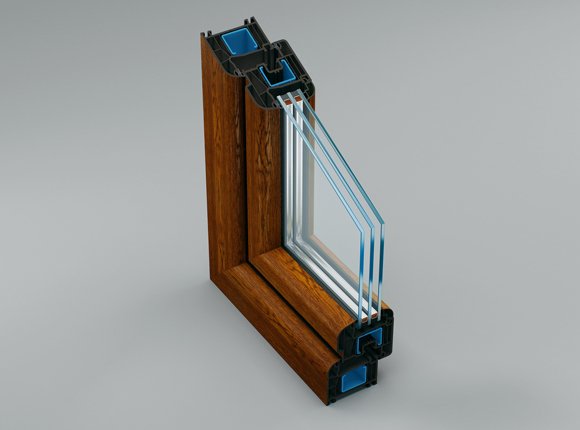

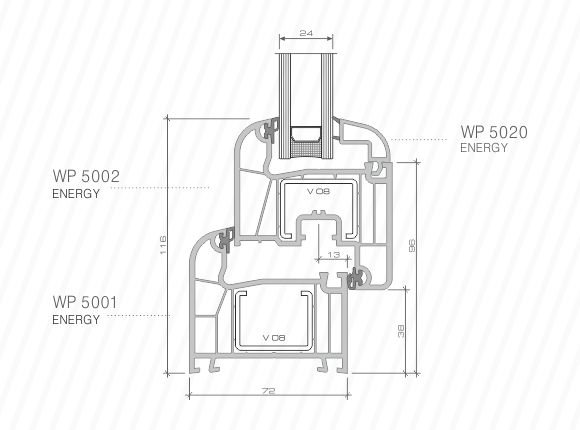

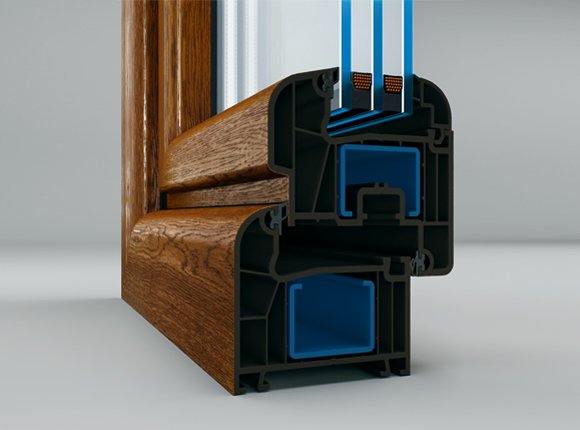

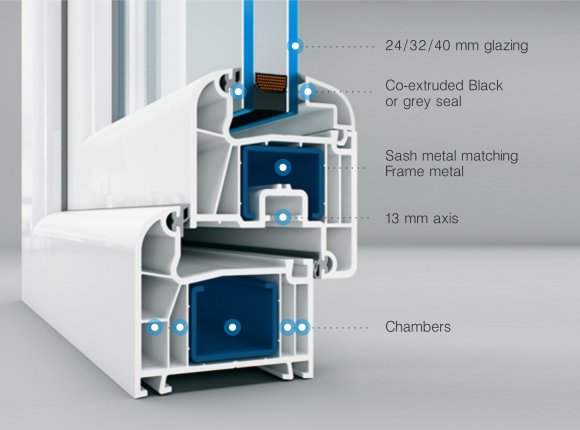

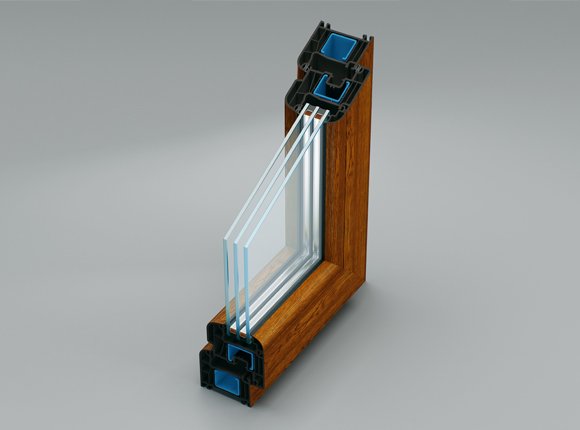

The WP5000 is a 5-chamber PVC system for doors and windows, which offers a variety of profiles that allow making of constructions with different types of opening and configuration:
Window opening inwards
Door opening inwards
Door opening outwards
Constructions of 90° and a random angle between them
One-sash and two-sash doors and windows combined with unopenable parts
A special mechanism - opening with sliding – VW
◙ ◙ ◙
Benefits
Possible application of glazing and glass panes with different thickness - 24 mm, 32 mm or 40mm
Steel profile with width of 1.5 mm and 2.0 mm thick which provides improved window strength (depending on the size), similar to the frame profile and the sash window profile
TPV seal for PVC joinery, which facilitates assembling operations
Existence of a special canal of the sash profile for faster and easier assembly of fitting. System center - 13 mm
Technical data
Width of the frame profile- 72 mm
Width of the sash window profile- 72 mm or 80mm
Thermal transmittance coefficient – 0,8 W / m2K
Sound insulation – 41 dB
Air permeability Class 4
Water tightness Class A8
Resistance to wind load Class 5A/5B
*The provided values are results for a window with 40 mm glazing.

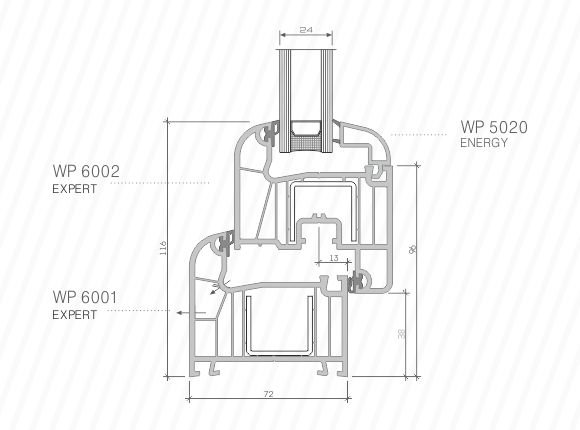

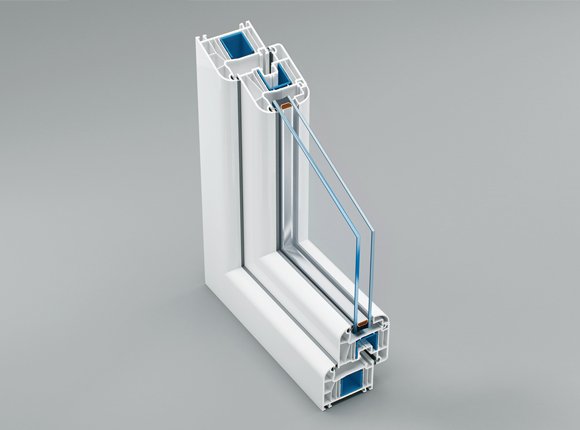

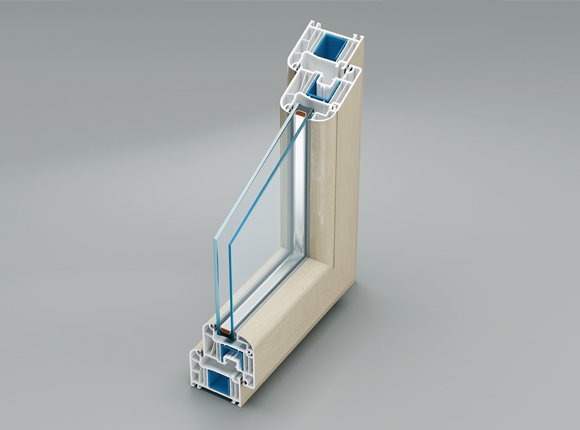

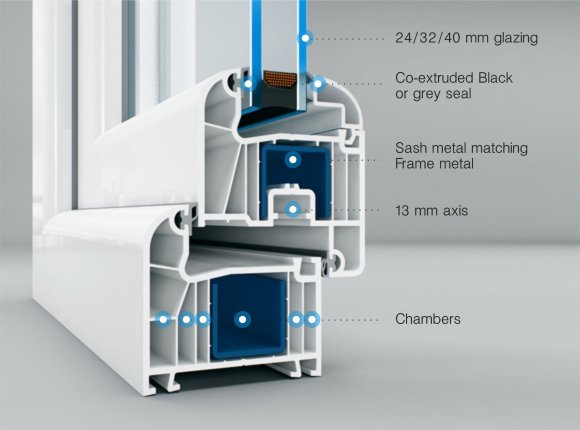

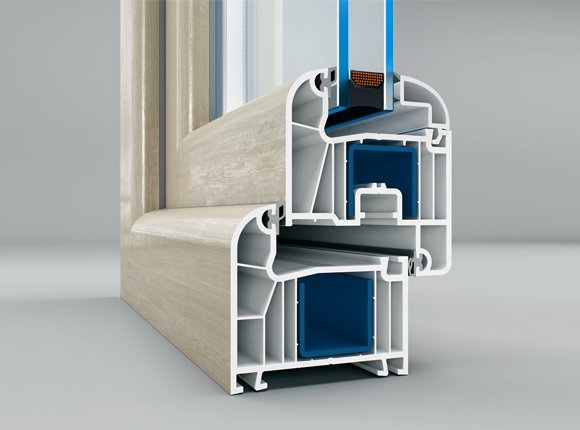

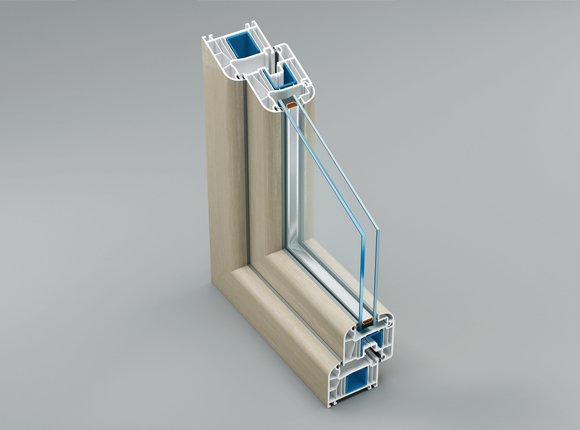

The WP6000 is a 6-chamber PVC system for doors and windows, which offers a variety of profiles that allow making of constructions with different types of opening and configuration:
Window opening inwards
Door opening inwards
Door opening outwards
Constructions of 90° and a random angle between them
One-sash and two-sash doors and windows combined with unopenable parts
A special mechanism - opening with sliding – VW
◙ ◙ ◙
Benefits
Possible application of glazing and glass panes with different thickness - 24 mm, 32 mm or 40mm
Steel profile with width of 1.5 mm and 2.0 mm thick which provides improved window strength (depending on the size), similar to the frame profile and the sash window profile
TPV seal for PVC joinery, which facilitates assembling operations
Existence of a special canal of the sash profile for faster and easier assembly of fitting. System center - 13 mm
Technical data
Width of the frame profile- 72 mm
Width of the sash window profile- 72 mm or 80mm
Thermal transmittance coefficient – 0,8 W / m2K
Sound insulation – 42 dB
Air permeability Class 4
Water tightness Class A8
Resistance to wind load Class 5A/5B
* The provided values are results for a window with 40 mm glazing.
